POWERPLUS range of forklifts
PowerPlus forklifts shine with cost-effective operation: their reliable diesel engine delivers stable power and excellent fuel efficiency (slashing running costs),
paired with eco-friendly setups like bright LED lights and eco-long materials to cut environmental impact while maintaining steady performance.
Featuring reliable diesel engine setups
- Reinforced frame, independent oil radiator, optimized cooling channels & dual counterweight vents (for effortless heavy load handling)
- Steering axle fitted with oversized tapered roller bearings (boosts steering stability)
- Specially shaped steel overhead guard & integrated return oil filters (protects hydraulic system for longer service life)
Epitomize the highest levels of performance and productivity.
PFD150E
Diesel Forklift 1.5 Ton
DESIGN
All new integrated dashboard: Keeps operators comfortable during long shifts, with seat-back file storage for quick document access; 30% more storage boosts work efficiency. Updated streamlined design (from its predecessor) adds bright LED lights & a modern panel reflector; eco-friendly materials blend practicality and sustainability.
COMFORT
Larger legroom paired with a dual suspension system ensures exceptional comfort; the compact steering wheel eases navigation through tight corners, and paired with electro-hydraulic reversing and car-style dual-handle switch, operation is more convenient, Optimized intake-exhaust system (with high-capacity silencer) reduces truck noise by 3dB and vibration by 20%; the transmission incorporates Japanese technology, cutting vibration by 35% for smoother operation and better comfort.
SAFETY
Wide view mast (18% wider visibility) greatly improves operational vision, ensuring safety for operators and bystanders, The cabin canopy is made of specially shaped steel tubes (reinforced structure) to protect operators from falling objects; the steering axle has oversized tapered roller bearings to enhance steering stability and further improve work safety
STABILITY
Featuring a reinforced frame, independent oil radiator, optimized oil/water cooling channels, and dual counterweight vents, this forklift maintains superior engine cooling and equipment reliability even under heavy loads, Core components are designed for high durability, ensuring stable operation in various work scenarios.
| Model | PFD150E |
|---|---|
| Power Type | Diesel |
| Operator Type | Seated |
| Load Centre | 1500 kg |
| Total Weight | 2720kg |
| Battery | 12/90 V/Ah |
| Operating Pressure | 145 kg/cm2 |
| Fuel Tank | 50 L |
| Engine Type | ISUZU C240 |
| Rated Power | 46/2500 HP/r.p.m |
| Rated Torque | 138/1800 N.m/r.p.m |
| Displacement | 2.369L |
| Emission Standard | Euro III |
| No. of Cylinder | 4 |
| Transmission Type | Powershift |
| Forward / Reverse | 1 / 1 |
| Travel Speed (laden/unladen) | 17.5/16.5 km/h |
| Lifting Speed (laden/unladen) | 550/500 mm/s |
| Lowering Speed (laden/unladen) | ≥450 / ≤500 mm/s |
| Max. Drawbar Pull (laden) | 17 kN |
| Max. Gradeability (laden) | 25 % |
| Tire Front | 6.5-10-10PR mm |
| Tire Rear | 5.00-8-10PR mm |
| Front Tread | 900 mm |
| Rear Tread | 920 mm |
| Wheelbase | 1475 mm |
| Service Brake | Hydraulic |
| Parking Brake | Mechanical |
| Rated Lift Height | 3000 mm |
| Free Lift Height | 155 mm |
| Fork size (LxWxT) | 920x100x35 mm |
| Mast Tilt Angle | 6/12° |
| Front Overhang (Wheel Center to Fork Face) | 405 mm |
| Rear Overhang | 405 mm |
| Ground Clearance (Bottom of Mast) | 115 mm |
| Length to Face of Fork (Without Fork) | 2285 mm |
| Overall Width | 1090 mm |
| Mast Lowered Height | 1995 mm |
| Mast Extended Height (With Backrest) | 3955 mm |
| Overhead Guard Height | 2120 mm |
| Turning Radius (Outside) | 2035 mm |

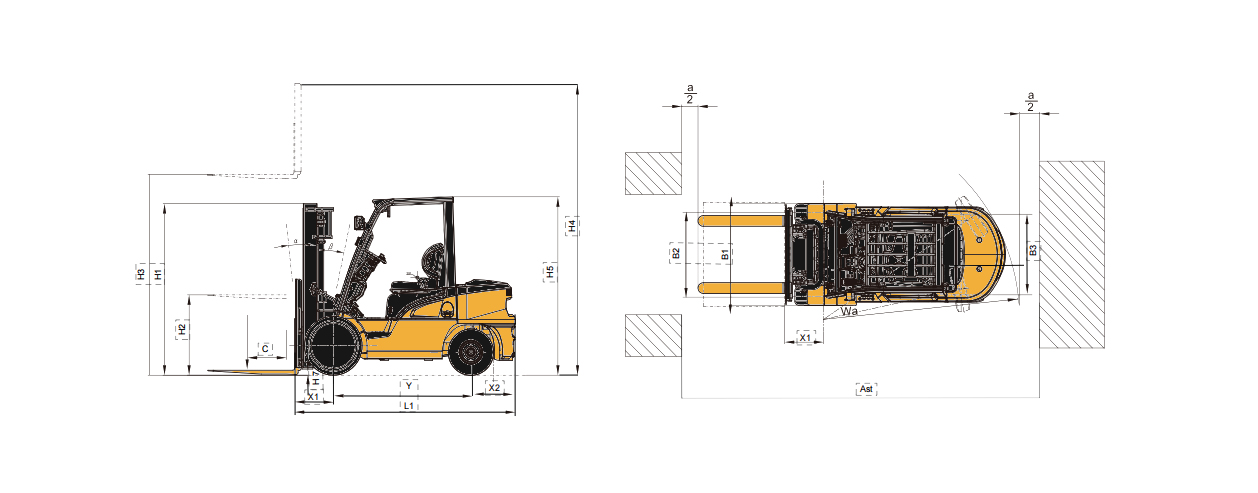

DIMENSION AND RANGES

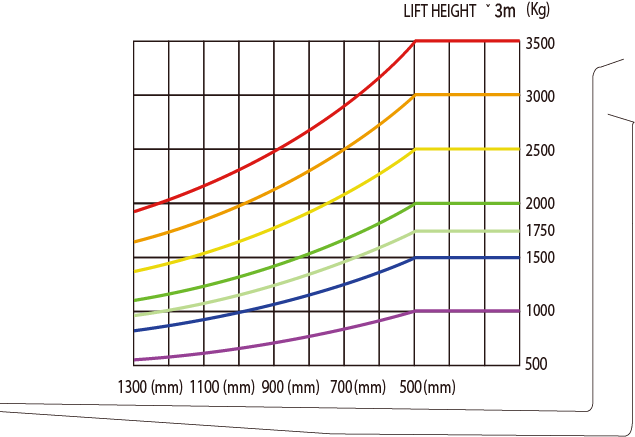

CAPACITY CHART
